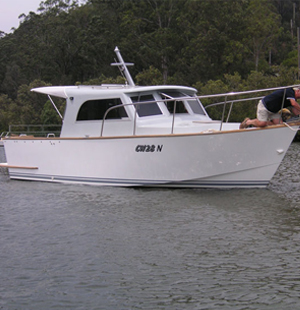

Our new model Coastal 28 has been developed from plans by Bruce Roberts. The hull is exactly to design but we have very much altered the cabin asthetics and interior layout. Open plan interior with sliding doors opening to the cockpit together with very ample headroom gives the boat a 'big' feel.

The boat is solid glass construction with the outer layers of vinylester resin for prevention against blistering and osmosis and the finish out of our molds is excellent. We can supply gelcoat or paint finish in your choice of colours [based upon our colour charts].

Engines for boats supplied to date range from 160 to 250 horsepower but our pick is the Yanmar 4LHA range from 190 to 240 horsepower. Weight has been accurately checked and is confirmed at 2,840kgs lightship condition.

We have one Coastal 28 available at a much reduced price.
For more detail on this boat click here or please enquire via the contact page.

power boat Coastal 28 28' motor boat
  • Thailand boats
  • boats for sale
  • boat builder


  • GRP Hull, vinyl ester resin outer, deck and superstructure isopthalic resin,foam core to hull sides and cabin, urethane/epoxy undercoat paint or white gel-coat finish.
  • Interior gelcoat or paint finish, Cherry timber trim
  • Decks non-skid finish
  • Marine grade aluminium windows
  • Stainless steel guardrail 2/3
  • Teak or stainless steel handrails to cabin top
  • 170 HP diesel engine + marine gear
  • 2" x 316L Stainless steel propeller shaft
  • 4 blade NiBr propeller
  • Standard upholstery
  • Helm seat
  • Full size toilet + shower
  • Interior seating and storage in molded GRP
  • SeaStar hydraulic steering
  • Engine bay exhaust fan
  • Heavy duty windscreen wiper
  • Morse controls
  • Navigation lights LED
  • Interior lighting LED
  • Diesel 560 litres [148 gals]
  • Freshwater 320 litres [84 gals]
  • Black water 110 litres [30 gals]
  • Racor fuel filter
  • Deep sea packing-less propeller shaft seal
  • Stainless steel anchor roller
  • Steel shipping cradle
  • Length overall - 28' [8.53M]
  • Beam - 9' 6" [2.89M]
  • Draft - 1' 9" [0.53M]
  • Headroom in cabin at center - 6' 6" [2M]
  • Displacement, lightship 2,840kgs
  • Displacement, half-load 3,340kgs


  • Hull/deck/superstructure construction Epoxy/Core-cell foam
  • Hatch to cabin top
  • Hardwood parquet to cabin floor
  • Yanmar 4BY series engine, Volvo D4 series or FNM 250HP
  • ZF 63A marine gear
  • Choice of veneer for interior joinery
  • Choice of interior color to blend with wood finish
  • Sunbrella upholstery and cockpit cushions
  • Electronics package
  • Reading lights
  • Stainless steel anchor, chain, rope
